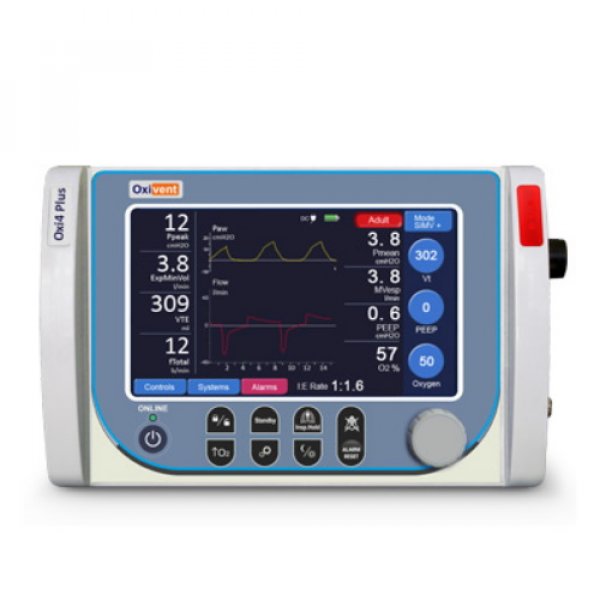

Transport ventilator OXIVENT-Oxi4 Plus
OXIVENT OXI4 Plus
Ensures the optimal ventilation therapy in transport situations for all patient groups from neonatal to adult
- High performance portable ventilator supporting intensive care features

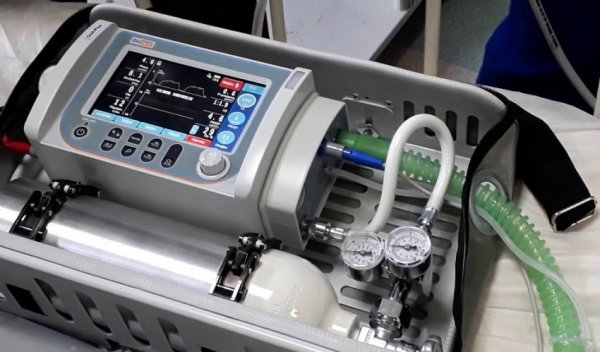

- Capability to use at hard conditions for ambulances, hospitals, aircrafts and hospital ships
- Display: 7.1 inch, LCD color touch screen
- 4 hours of battery operating time
- Air support: Built-in turbine (ambient air)
- Іnvasive/Noninvasive ventilation and optional high flow oxygen therapy
- Adult, pediatric and optional neonatal kit software
Ventilation Modes:
|
Type |
Mode |
Description |
Adult |
Pediatric |
|
Invasive Modes |
PCV+ |
Pressure-controlled ventilation |
✓ |
✓ |
|
|
P-SIMV |
Pressure-controlled synchronized intermittent mandatory ventilation |
✓ |
✓ |
|
Pressure |
PSV+ Apnea Backup |
Pressure supported apnea ventilation |
✓ |
✓ |
|
|
CPAP/PSV |
Continuous Positive airway pressure |
✓ |
✓ |
|
|
SBT |
Spontaneous Breath Trial |
optional |
optional |
|
|
APRV |
Airway pressure release ventilation |
✓ |
✓ |
|
|
Bilevel |
Duo positive airway pressure |
✓ |
✓ |
|
Pressure Regulated |
PRVC |
Pressure Regulated Volume Control |
✓ |
✓ |
|
|
PRVC-SIMV |
Pressure Regulated Volume Control with Synchronized intermittent mandatory ventilation |
✓ |
✓ |
|
Volume |
(S)CMV |
(Synchronized) controlled mandatory ventilation |
✓ |
✓ |
|
|
V-A/C |
Volume - Assist Control |
✓ |
✓ |
|
|
V-SIMV |
Synchronized intermittent mandatory ventilation |
✓ |
✓ |
|
Noninvasive |
P-A/C |
Pressure - Assist Control |
✓ |
✓ |
|
|
PSV-S/T |
Pressure supported ventilation |
✓ |
✓ |
|
|
nCPAP |
Nasal Continuous Positive Airway Pressure |
✓ |
✓ |
|
|
HiFlowO2 |
High flow oxygen therapy |
optional |
optional |
Technical Specifications:
|
Special functions |
Manual breath, O2 enrichment, standby, screen lock, apnea backup ventilation, inspiratory hold, dimmable screen, configurable quick-start settings, startup settings based on patient’s gender, optional integrated pneumatic nebulizer, O2 consumption display |
|
Respiratory frequency |
1 to 120 b/min (optional neonatal 1 to 150 b/min) |
|
V-A/C |
1 to 80 b/min |
|
(S)CMV |
1 to 80 b/min |
|
V-SIMV |
1 to 80 b/min |
|
PCV+ |
1 to 150 b/min |
|
Bilevel-ST |
5 to 80 b/min |
|
P-SIMV |
1 to 150 b/min |
|
Bilevel |
1 to 80 b/min |
|
APRV |
1 to 120 b/min |
|
Tidal volume |
30 to 2500 ml (1 to 2500 ml with optional neonatal kit) |
|
PEEP |
0 to 25 cmH2O |
|
Oxygen |
21% to 100% |
|
I:E ratio |
1:10 to 4:1 |
|
Inspiratory time (TI) (Adjustable) |
0.10 to 12 s |
|
Flow trigger |
Closed, 0.5 to 20 l/min |
|
Pressure trigger |
-0.5 to -20 CmH2O |
|
Inspiratory Flow (Adult / pediatric) |
Adult – Pediatric: 0-200 l/min Neonatal: 0 – 40 l/min |
|
Control method |
Front panel with rotary knob and digital button |
|
Manual ventilation |
yes |
|
Inspiration hold |
yes |
|
Expiration hold |
yes |
|
Adjustable Flow Rate |
yes |
|
Adjustable Current Termination |
yes |
|
Adjustable Time Termination |
yes |
|
O2 Flush |
yes |
|
Pressure Control Flow Termination |
yes |
|
P high (APRV / Bilevel) |
4 to 60 cmH2O |
|
P low (APRV) |
0 to 25 cmH2O |
|
T high (APRV) |
0.1 to 12s |
|
T low (APRV) |
0.2 to 12s |
|
Expiration trigger sensitivity (ETS) |
5% to 85% inspiratory peak flow |
|
Flow (HiFlowO2) |
1 to 80 l/min (optional) |
| Manufacturer: Modül Grup Mühendislik Ltd, Turkey | |
