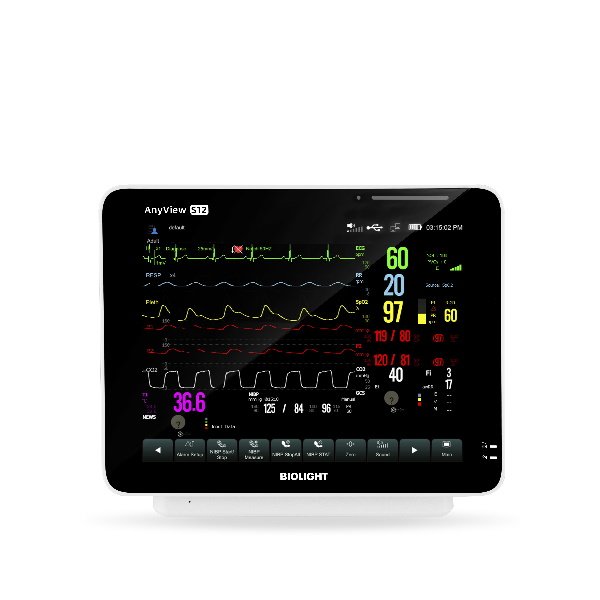

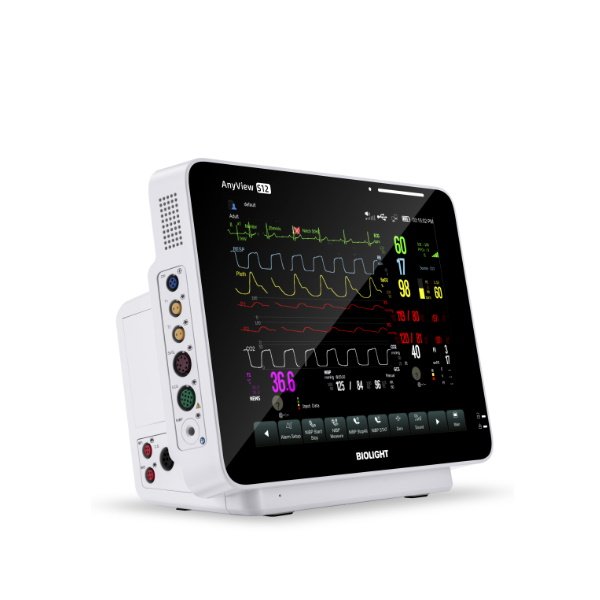

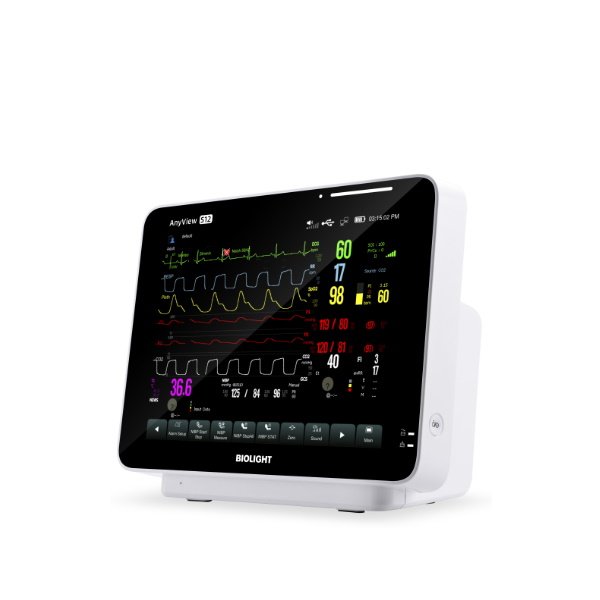

Patient Monitor S12

Patient Monitor S12

Intended to be used for monitoring, displaying, reviewing, storing and alarming of multiple physiological parameters of patients, including ECG, Heart Rate (HR), Respiration Rate (RR), Temperature (TEMP), Pulse Oxygen Saturation (SpO2), Pulse Rate (PR), Non-invasive Blood Pressure (NIBP), Carbon dioxide (CO2), Invasive Blood Pressure (IBP) and Cardiac output (C.O.).

Available models:

Patient Monitor S12

Patient Monitor S12 with 2-IBP module

Patient Monitor S12 with Mainstream ETСO2 module C6

Technical specifications:

12.1” Color LCD high-resolution 800 x 600p monitor, capacitive touchscreen

Auto-adjusting brightness based on ambient light

Multiple measuring functions deliver impressive reliability and performance

Powerful data storage capability for trend data, alarms, NIBP measurements

Convenient handle and easy to operate

Convenient built-in accessories box

Changeable screen layout with hand swipe gestures (swipe up or down to adjust brightness or volume)

Thermal printer

Rechargeable Li-ion battery

Operating time: >240 min

Dimensions: 32 х 17,5 х 26,2 cm

Weight: 4 kg

Data Storage:

Alarm event: 3000 groups and associated waveform

Trend : 180h，minimum resolution is 1min

6h, minimum resolution is 5s

ARR event: 3000 groups and associated waveform

NIBP: 2400 groups

Holographic waveform: 72 hours

Standard configuration：
3/5/6 lead ECG, HR, Resp, SpO2, PI, RR(from pleth), NIBP, 2-Temp, Capacitive Touch Screen, Rechargeable Li-ion battery (2.5Ah).

Manufacturer: Guangdong Biolight Meditech Co., Ltd, China
