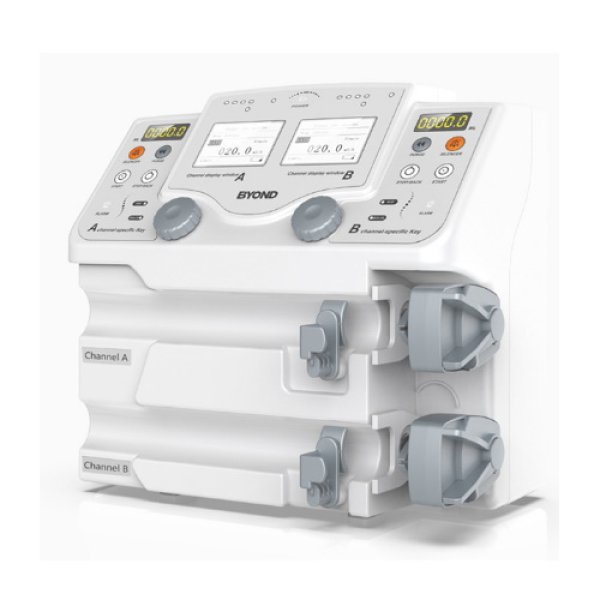

Syringe pump BYZ-810TU
BYZ-810TU – Syringe pump with 3 Injection modes are available: Simple mode, Vol/T mode, Vol/W mode, for accurate administration of medicines to the patient
Features:
| Compact and lightweight, portable, convenient design and intuitive user interface |  |
| Double LCD dispay with nice interface, easy to operate, enable more legibility and convenience | |
 |
Compatible with recommended syringes by default with great accuracy; other syringes can be used by correct calibration |
| Unique voice, word and light combination alarms, very faster and reliable | |
| Builtin drug dosage reference database very useful for clinic use | |
| Limited injection amount function allows presetting injection amount | |
| Intelligent recognition of the 10ml、20ml、30ml、50ml(60ml) sy-ringe |
 |
||
| Double LCD display | High precision | Independent Control Center |
Specification:
| Injection Rate |
10 ml: 0.1 ~300 ml/h 20 ml: 0.1~600 ml/h 30 ml: 0.1 ~900 ml/h 50/60 ml: 0.1~ 1500 ml/h |
| Bolus Rate |
10 ml: 0.1~240 ml/h 20 ml: 0.1 ~480 ml/h 30 ml: 0.1~720 ml/h 50/60 ml: 0.1 ~1200 ml/h |
| Bolus Volume |
10 ml: 0.1~5 ml (0.1 ml step) 20 ml: 0.1 ~10 ml (0.1 ml step) 30 ml: 0.1~10 ml (0.1 ml step) 50/60 ml: 0.1 ~10 ml (0.1 ml step) |
| KVO Rate |
0.1 ml/h ~ 5 ml/h (0.1 ml step) |
| VTBI (Volume to be Injected) |
0.1 ml ~9999.9 ml |
| Cumulative Volume |
0.1 ml ~9999.9 ml |
| Injection Accuracy |
Within ±3% (after calibration) |
| Anti-Bolus |
Automatically release tubing pressure when there is occlusion |
| Alarms Information |
Injection finished, soon finish, VTBI finished , injection is blocked, syringe falls off, syringe installation error, forgotten operation, low battery, battery runs out, abnormal running state, equipment failure, system power down etc. |
| Drug Library |
Up to 1000 drugs are provided |
| Injection records |
2000 pcs |
| Power Source |
Three options for power supply: 1) 100-240VAC, 50/60Hz; 2) Inserted Li-battery 11.1V, capacity> 1800mAh, 8 hours backup time at the rate of 5m l/h for a fully charged battery; 3) External DC 12V power supply (option, possible with an additional 12 V DC cable) |
| Dimensions |
304 mm (L) x 174 mm (W) x 260 mm (H) |
| Weight |
Approx. 2.2 kg |
Manufacturer: Hunan Beyond Medical Technology Co., Ltd
